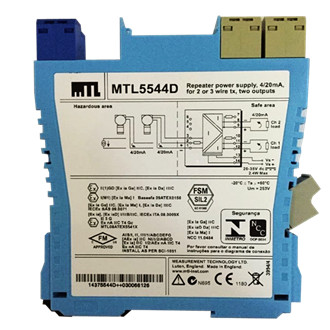

MTL5544D Repeater Power Supply Single Channel 4 to 20mA Safety Barrier
MTL5544D provides a fully-floating dc supply for energising a conventional 2- or 3-wire 4/20mA transmitter located in a hazardous area, and repeats the current in other circuits to drive two safe-area loads. For HART 2-wire transmitters, the unit allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current. Separately powered current sources, such as 4-wire transmitters, can be connected but will not support HART communication.
Trade information of MTL5544D Repeater Power Supply Single Channel 4 to 20mA Safety Barrier
Order code: MTL5544D
Type:Repeater power supply
Description:DC supply. Energising 2- or 3 wire 4/20mA transmitters
Brand:MTL
Serie:IS Isolator 5500 series
Minimum quantity:1
Offset:1
Features of MTL5544D Repeater Power Supply Single Channel 4 to 20mA Safety Barrier
• MTL5544D
• Repeater power supply
• single channel, 4/20mA, HART®
• for 2- or 3-wire transmitters, two outputs
• The MTL5544D provides a fully-floating dc supply for energising a conventional 2- or 3-wire 4/20mA transmitter located in a hazardous area and repeats the current in other circuits to drive two safe-area loads
• For HART 2-wire transmitters, the unit allows bi-directional transmission of digital communication signals superimposed on the 4/20mA loop current
• Separately powered current sources, such as 4-wire transmitters can be connected but will not support HART communication
• Shipping weight: 1 kg
Description of MTL5544D Repeater Power Supply Single Channel 4 to 20mA Safety Barrier
IS Isolators, 4500 & 5500 series. Galvanic isolation solutions with low power dissipation and quick install and release mechanism. Most Isolators are multichannnel and have broken line monitoring.
The backplane mounting range MTL4500 is designed with systme vendors in mind for project focussed applications. A Multiway connector to the backplane provides safe-area and power supply connections, while hazardous-area connections plug into the front of the module, simplifying installation and maintenance
The DIN rail mounting MTL 5500 range meets the needs of the IS interface market for application focussed projects. The 5500 clips quickly onto a DIN rail, so it is compatible with the industry- standard mounting system. Wiring is simplified by plug in safe- and hazardous area connectors, and a power plug which accepts a power bus.
Line fault detection facilities are provided accross the range. In addition status LEDs and configuration switches are located on the top or side of the indvidual modules.
MTL5544D Repeater Power Supply Single Channel 4 to 20mA Safety Barrier
| MTL5000 | Function | MTL5500 | Notes |
| MTL5011B | 1ch, changeover relay output | MTL5511 | |
| MTL5012 | 1ch, solid-state output | Use 1ch of MTL5513 | |
| MTL5012S | 1ch, solid-state output, UE1 special | No replacement | |
| MTL5014 | 1ch, c/o relay output, LFD relay | MTL5514/14D |
MTL5514 does not provide 1in 2out function. MTL5514D with 1in 2out available Q1 2014 |
| MTL5015 | 2ch, solid-state output | MTL5513 |
Common connection on haz side, max frequency response 500Hz |
| MTL5016 | 2ch, n/o relay output | MTL5516C | |
| MTL5017 | 2ch, n/o relay output, LFD relay | MTL5517 | LFD relay energises on alarm |
| MTL5018 | 2ch, changeover relay output | MTL5516C | Common connection on haz side |
| MTL5018ac | 2ch, changeover relay output, ac power |
Continues as MTL5018ac. Alternative option: MTL5516C fitted with MPA5500 ac adaptor |
|
| MTL5021 | Loop powered, IIC, (12.85V, 45mA, cl 45mA) | MTL5521 | (12.8V, 48mA, cl 48mA) |
| MTL5022 | Loop powered, IIB, (12.9V, 60mA, cl 60mA) | MTL5522 | (9.9V, 70mA, cl 70mA) |
| MTL5023 | Logic ctrl, lfd, phase,(12.85V, 45mA, cl 45mA) | MTL5523 | (12.8V, 48mA, cl 48mA) |
| MTL5024 | Logic ctrl, phase, (12.85V, 45mA, cl 45mA) | MTL5524 | (12.8V, 48mA, cl 48mA) |
| MTL5025 | Loop powered, IIC, (8.6V, 45mA, cl 45mA) | MTL5525 | (7V, 48mA, cl 48mA), lower Io |
| MTL5031 | Vibration transducer interface | MTL5531 | Now Velomitor compatible |
| MTL5032 | Pulse isolator | MTL5532 | Now with 4-20mA output and alarm |
| MTL5040 | Loop isolator | Use MTL5541 and MTL5546Y | |
| MTL5041 | For 2-wire transmitters | MTL5541 | |
| MTL5042 | For 2- or 3-wire txs, smart | MTL5541 | |
| MTL5043 | Dual output for 2-wire smart txs | MTL5544D | No current sink o/p. Passive Tx input |
| MTL5044 | Two channel for 2-wire txs | MTL5544 | Now with passive Tx inputs |
| MTL5045 | Isolating driver | MTL5546Y | Smart only versions |
| MTL5046 | Smart isolating driver with LFD | MTL5546 | |
| MTL5049 | Two channel isolating driver | MTL5549Y | Smart only versions |
| MTL5051 | Serial-data comms isolator | Continues as MTL5051 model | |
| MTL5053 | Fieldbus isolator/power supply | Discontinued | |
| MTL5061 | Fire/smoke detector interface | MTL5561 | |
| MTL5073 | Temperature converter | MTL5575 | Now with trip alarm |
| MTL5074 | Temperature converter | MTL5575 | Now with trip alarm |
| MTL5081 | mV/THC isolator | MTL5581 | |
| MTL5082 | Resistance isolator | MTL5582 | |
| MTL5113P | Failsafe sw/prox interface | MTL5501-SR | |
| MTL5314 | Trip amplifier | Continues as MTL5314 model | |
| MTL5344 | Repeater power supply | Discontinued | |
| MTL5349 | Isolating driver | Discontinued | |
| MTL5991 | 24V power supply | Continues as MTL5991 model | |
| MTL5995 | Fieldbus power supply | Convert to F10X range product |
